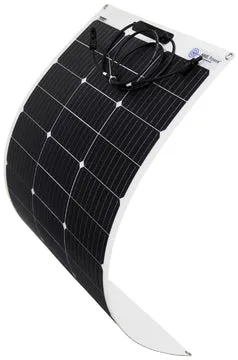

Name: Aims Power - 230 Watt Flexible Bendable Slim Solar Panel Monocrystalline - PV230SLIM
SKU: 305210

Product Details ＋

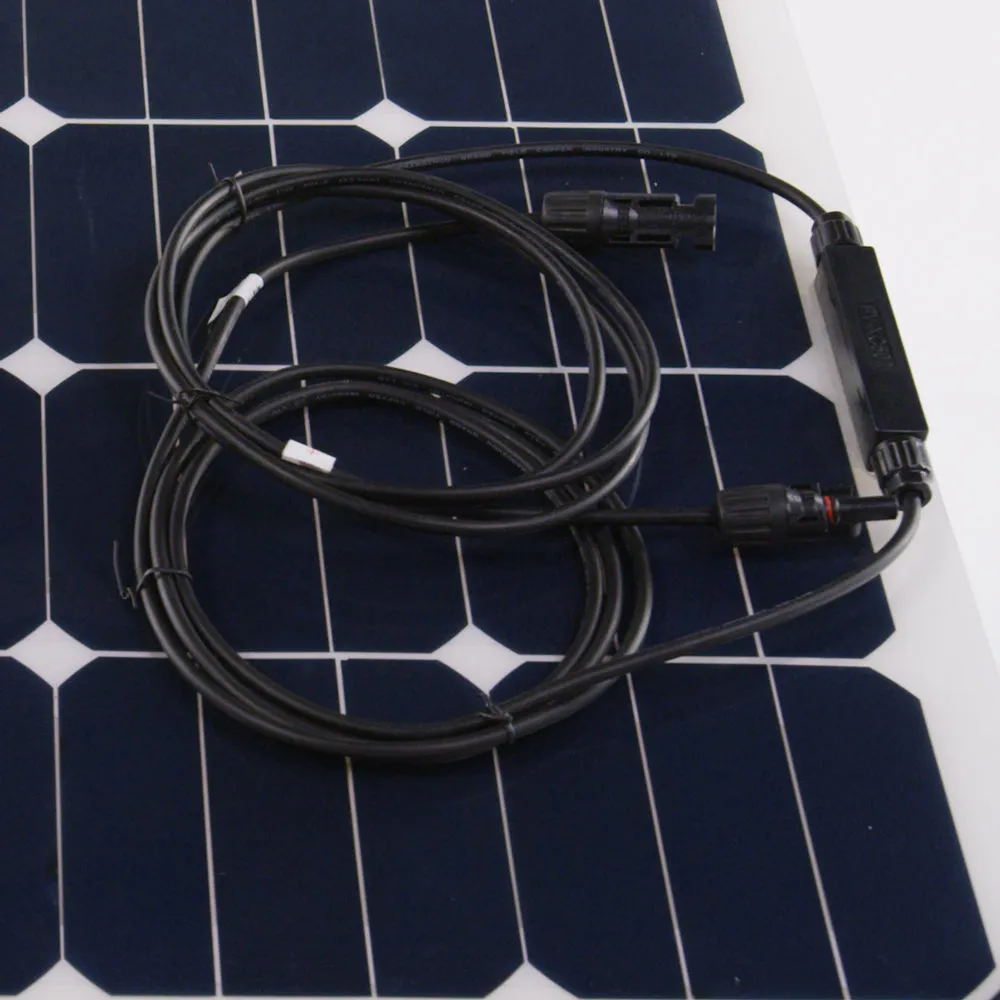

Experience the power of the AIMS Power Flexible Solar Panel, your go-to solution for on-the-go adventures and off-grid living. This bendable, thin solar panel is designed with an anti-cracking film for enhanced durability and adapts effortlessly to uneven and curved surfaces. Ideal for RVs, boats, buses, vans, utilities, golf carts, and more, it’s built with advanced monocrystalline solar cells for efficient energy harvest. Installation is easy with an IP 65 rated Junction Box and pre-drilled grommet holes. Backed by a 5-year warranty and 10-year 80% output guarantee, it’s now available for purchase on Appliance Guys. Power your adventures with confidence.

Appliance Guys Exclusive Benefits:

Lifetime Phone Support: Expert assistance always within reach.
Open 7 Days a Week: Convenience tailored to your schedule.
Price Match Guarantee: Shop confidently, knowing you're getting the best deals.

Features

Features

Versatile Application: Ideal for RVs, boats, buses, vans, utilities, golf carts, and more.

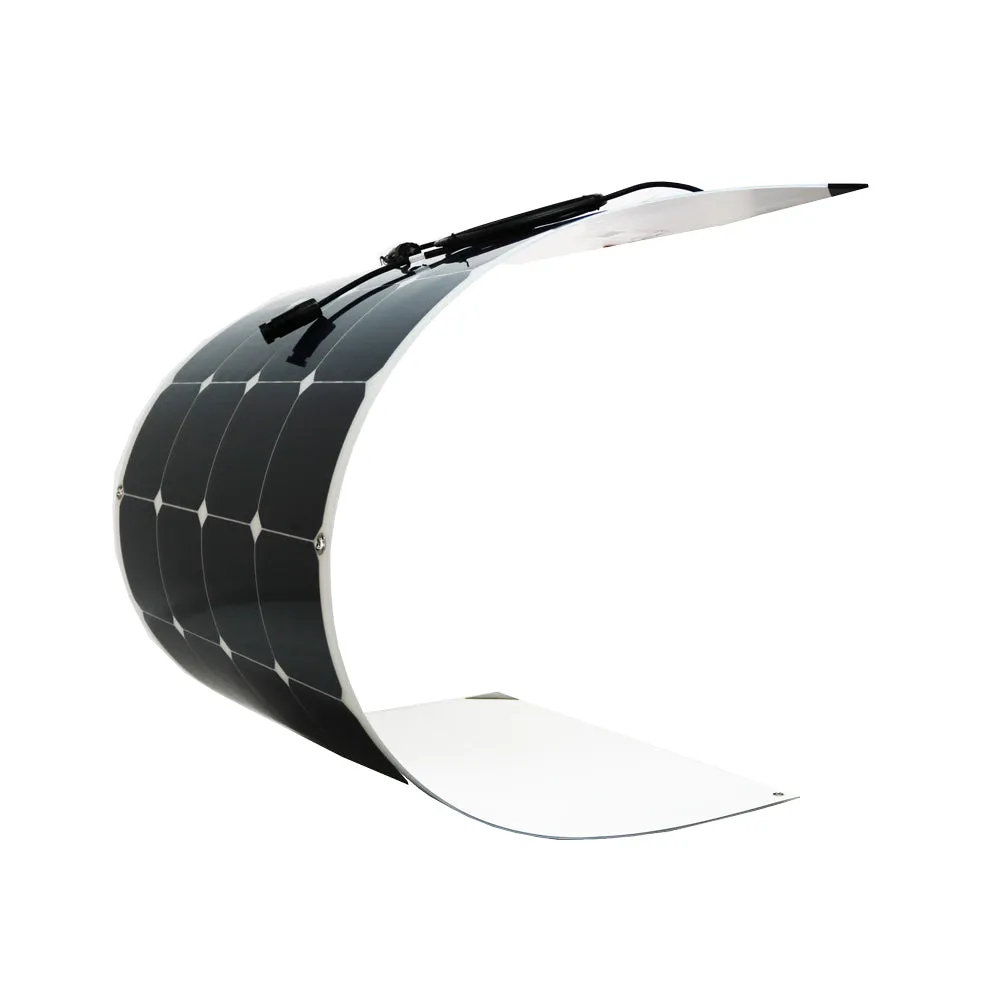

Flexibility: Up to 60⁰ degree bend, allowing installation on curved and uneven surfaces.
Durability: Constructed with high-quality materials and advanced monocrystalline solar cells for efficient energy harvest.
Weather Resistance: Suitable for outdoor use with resistance to varying weather conditions.
Adaptable Mounting Options: Pre-drilled grommet holes facilitate installation using zip ties, Velcro, or straps for non-permanent applications.

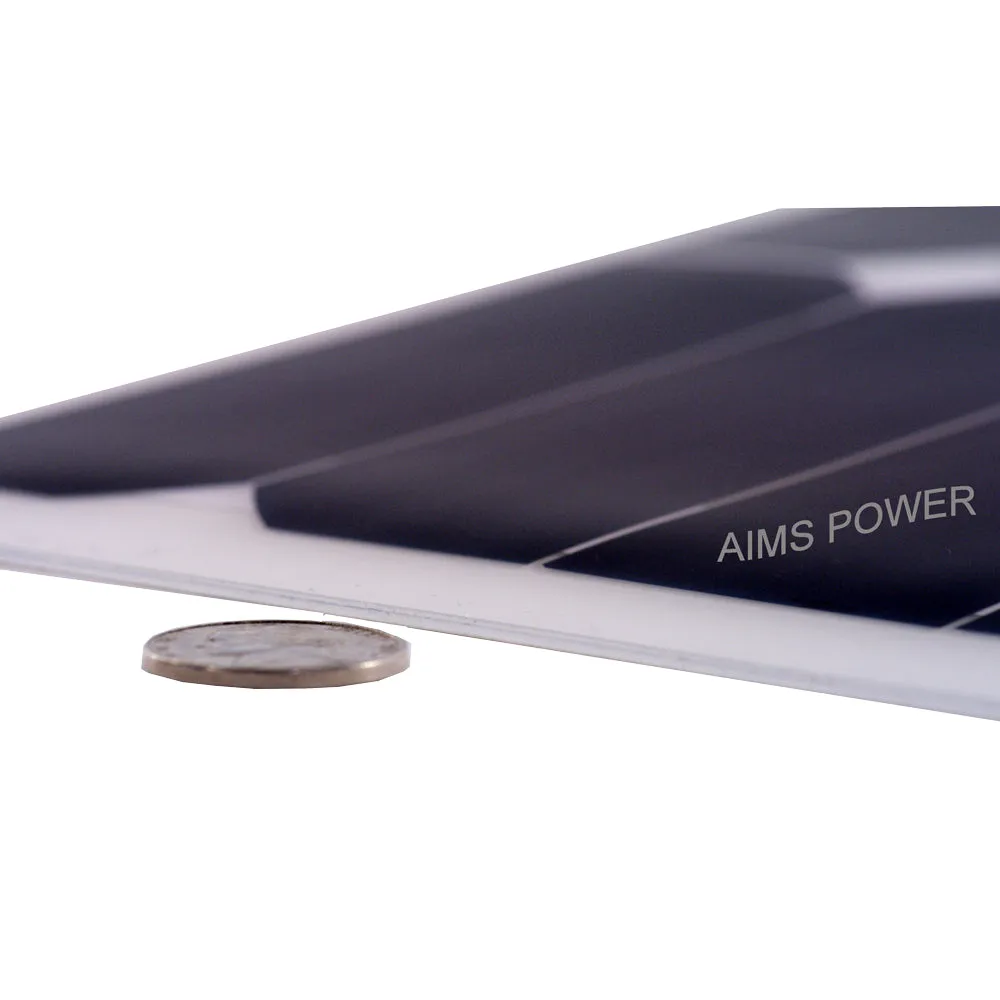

Thin and Lightweight: Comparable thickness to a nickel, enabling the use of strong adhesive or industrial thread for permanent mounting applications.
Bypass Diode Technology: Minimizes power drop when shaded, ensuring consistent performance.
Certified Quality: Modules independently tested to conform to certification and regulatory standards.

Specifications

Specifications

High Performance: Achieve up to 93% light transmittance
Cell Efficiency: 22.1% (among the highest)
Module Efficiency: 20.1% (among the highest)
Maximum Power: 230 Watts
Tolerance Wattage: /- 5%
Maximum System Voltage: 1000V DC (UL)
Optimum Operating Voltage (Vmp): 17.4V
Optimum Operating Current (Imp): 13.22A
Open-Circuit Voltage (Voc): 20.8V
Short-Circuit Current (Isc): 13.99A
Power Tolerance: 0= 5W, 5W /-
Temperature Coefficients ⁰C: Power: 0.38% / °C, Current: 2.2mA / °C, Voltage: 60.8V / °C
Temperature Range: -40⁰F to 185⁰F
