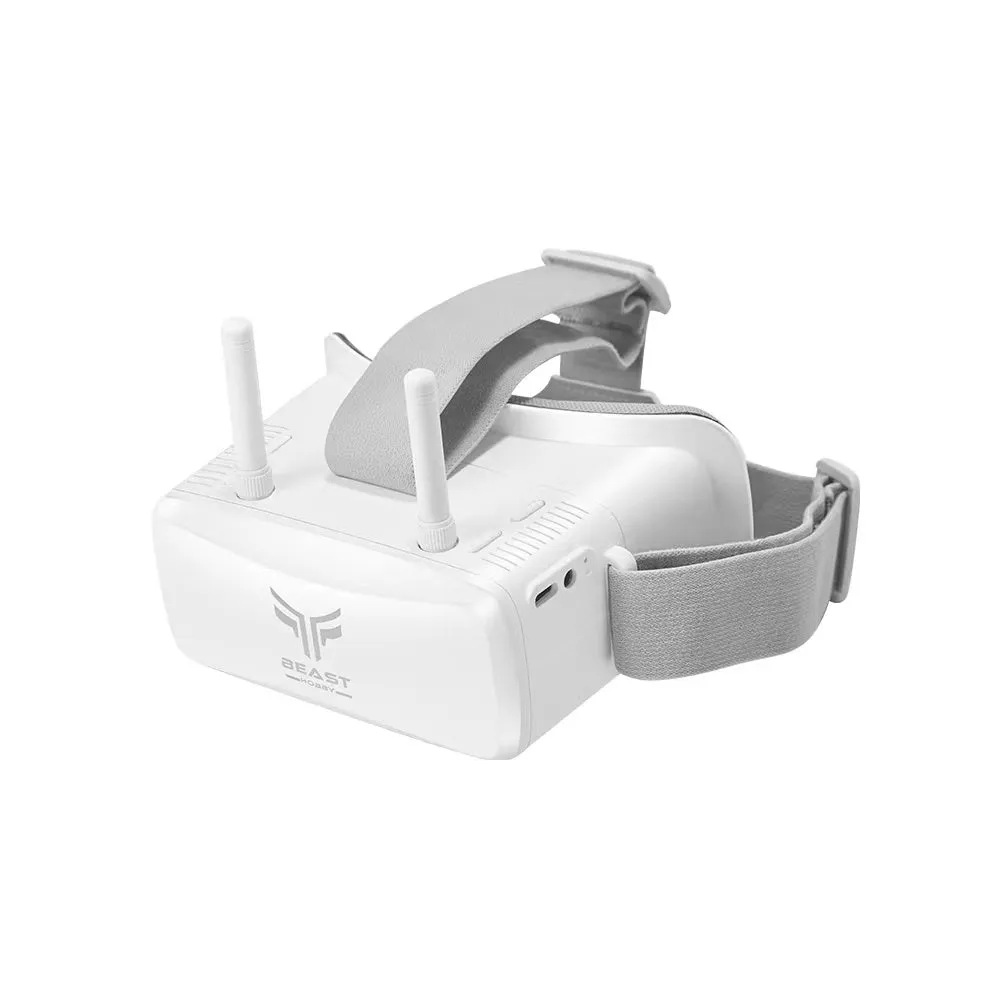

Name: BeastHobby VR100 Focus Adjustments FPV Goggle with 5.8G 40ch Receiver 3.0 inch screen for Racing Drone Micro Whoop [DG]
SKU: 305158

Product Details ＋

Features:

● New Refraction light path design;
● Object distance adjustable, could match Myopia degree（0°-700°）；
● Low power consumption, working current 350mA；
● super sensitive 5.8GHz receiver module strong anti-interference, more stable
signal；
● 40 CH modules, channels Auto-Searching；
● 3.0 inch 480*320 Screen resolution Highlight IPS screen；
● Built in 3.7V/1200mAh Lithium battery；
● TYPE-C charging output；
● Real-time video return, no time delay；
● Support Chinese / English menu；
● Support External video signal input；
● Support Av signal video output could connect with the external DVR for recording；

Specifications:

Item	VR100
Name	5.8G FPV Goggle
Display	Screen: 3.0 inch IPS Highlight screen
	Screen resolution: 480*320
	Ratio: 16:9
	View Angle: 360-degree viewing angle
	Backlight brightness: 500cd/m²
video delay	Less than 10 milliseconds
Interface definition	antenna	SMA male to RP-SMA female
	charging	TYRE-C port charge battery
	headphone	3.5mm AV port available for video input and output
Language	Chinese and English
Power Supply	Power adapter: suggest use DC5V/1 or DC/5V2A interface
	Capacity: Built in 3.7V/8\1200mAh lithium polymer battery
	Working power: working current: 350 mA one hour charge fully, can be worked nearly 3 hours
Wireless	Frequency Table (MHz)
		CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
	Band A	5865	5845	5825	5805	5785	5765	5745	5725
	Band B	5733	5752	5771	5790	5809	5828	5847	5866
	Band E	5705	5685	5665	5645	5885	5905	5925	5945
	Band F	5740	5760	5780	5800	5820	5840	5860	5880
	Band R	5658	5695	5732	5769	5806	5843	5880	5917
Appearance	Dimension: 107mm * 150mm * 75mm
Appearance	Weight: 300g without antenna
