Rated Line Pull | 12,500 lbs (5,670 kg) single line |
Motor | 5.0 hp / 3,730 w 12V Series Wound |
Gear Ratio | 3-Stage Planetary 225:1 |
Clutch (freespooling) | Rotating Ring Gear |

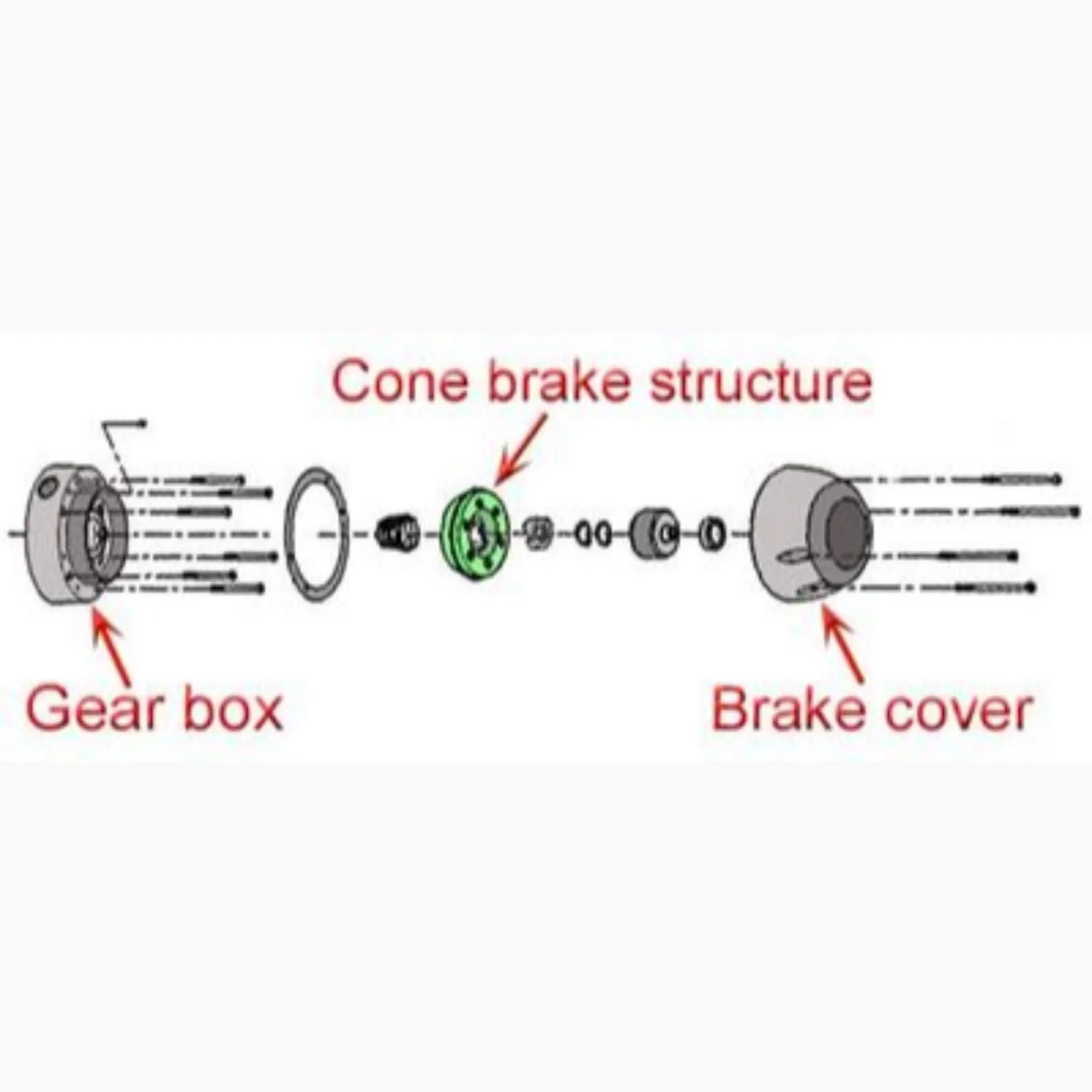

Brake (outside the drum) | Automatic, full load CBS (Cone Brake Structure) |
Winch Construction | Aluminum Die Cast Housing with Steel Drum |
Drum Size | 2.5" x 9" (63.5 x 228 mm) |

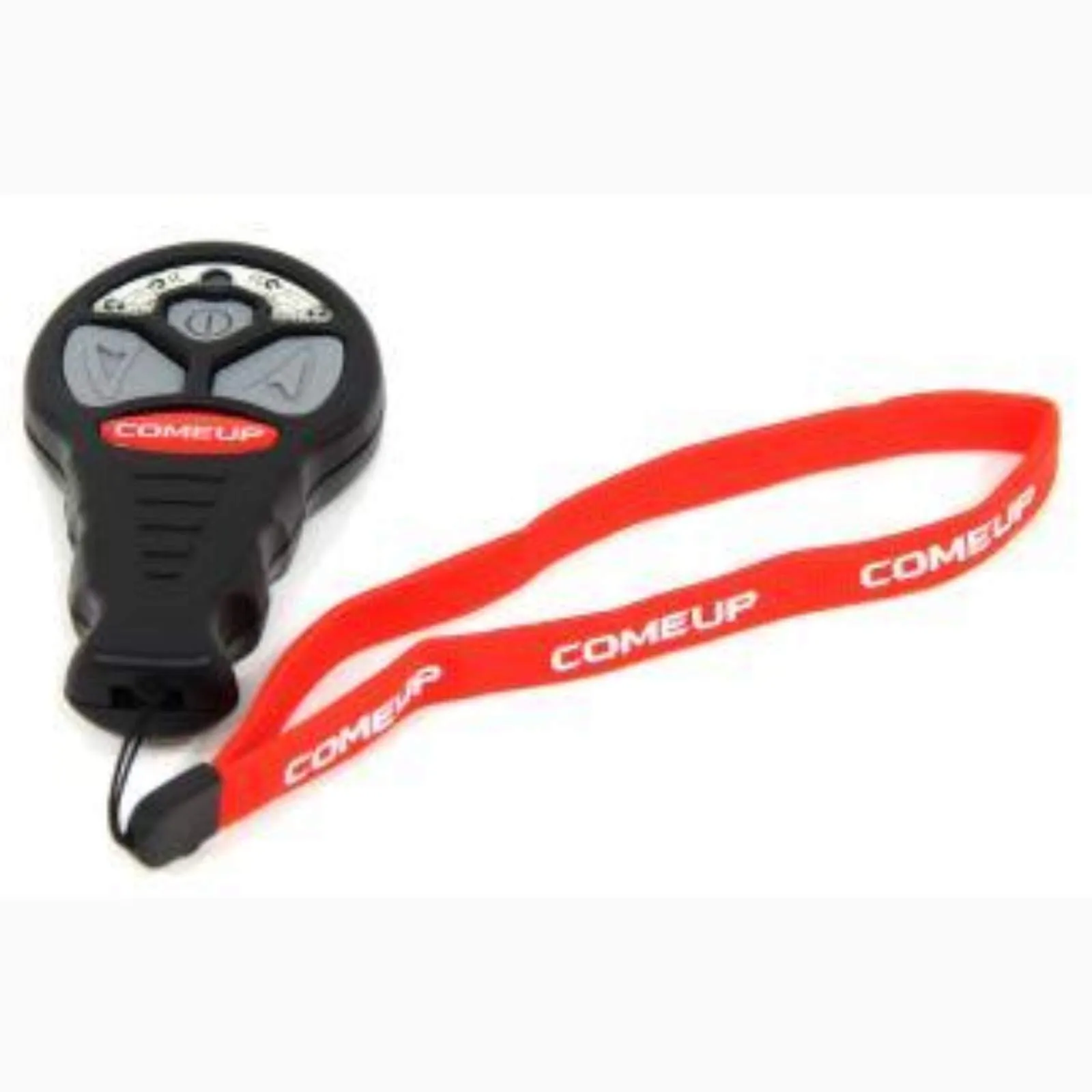

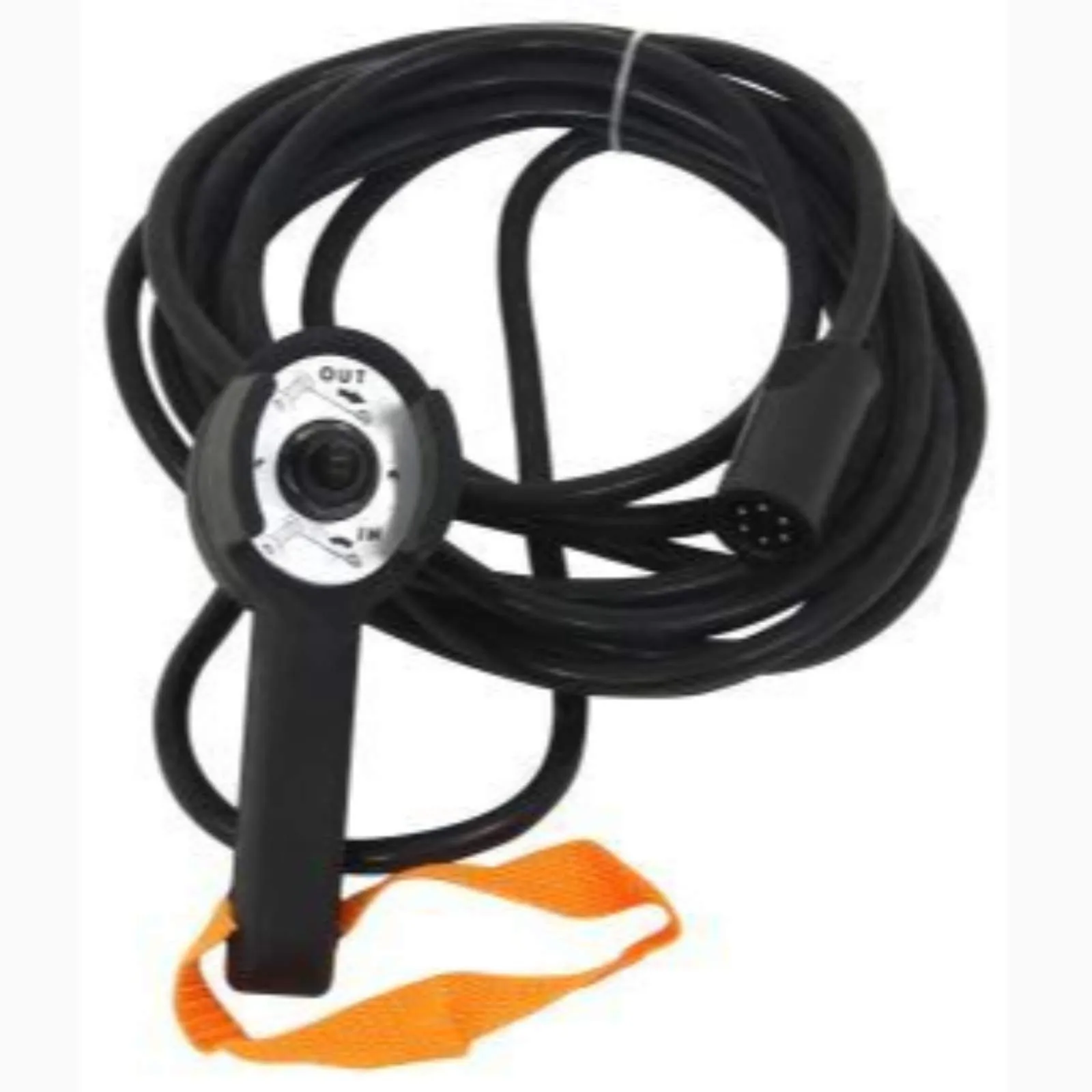

Control | Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord |

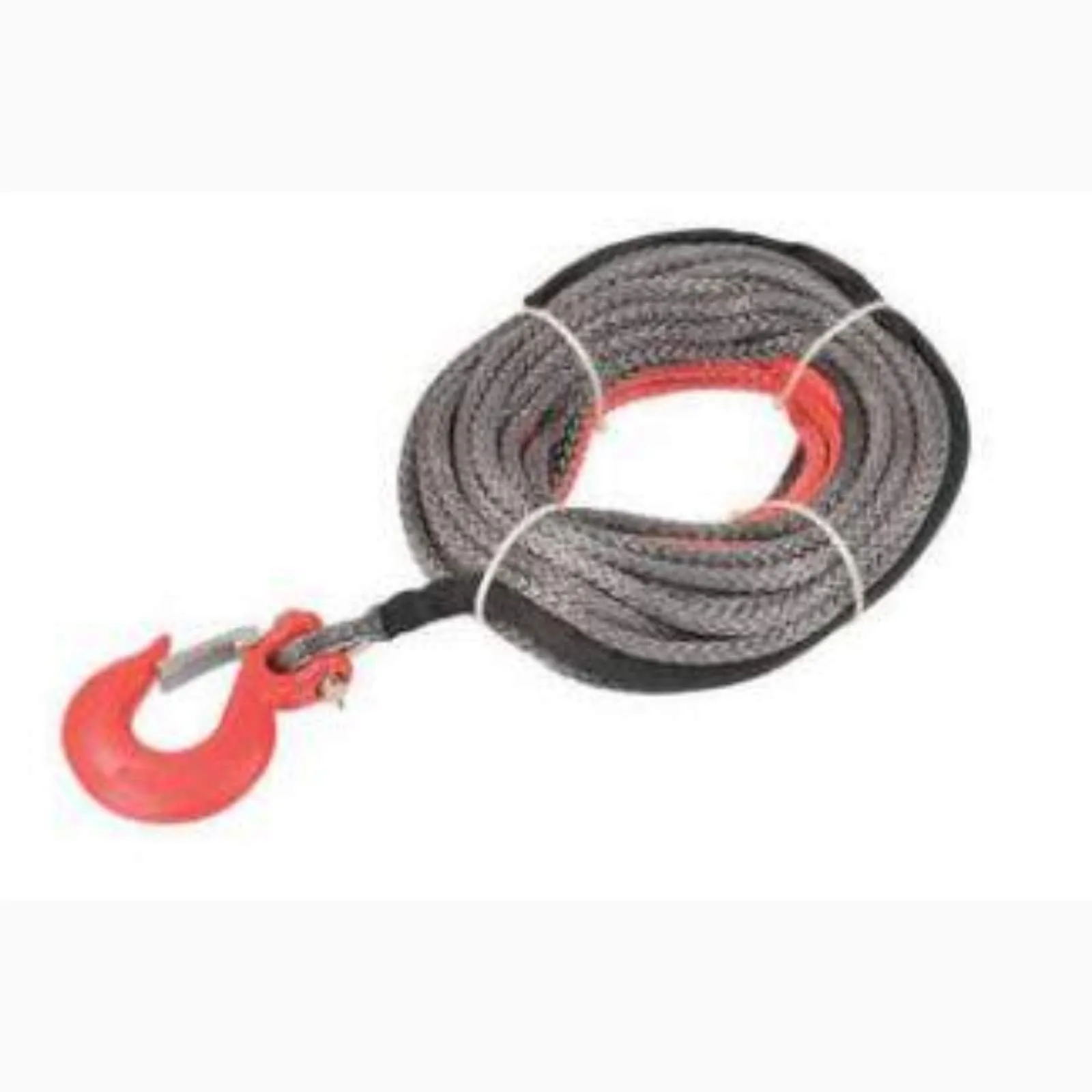

Rope Type | Synthetic Rope |
Rope Size | 7/16" x 82' (11 mm x 25 m) |

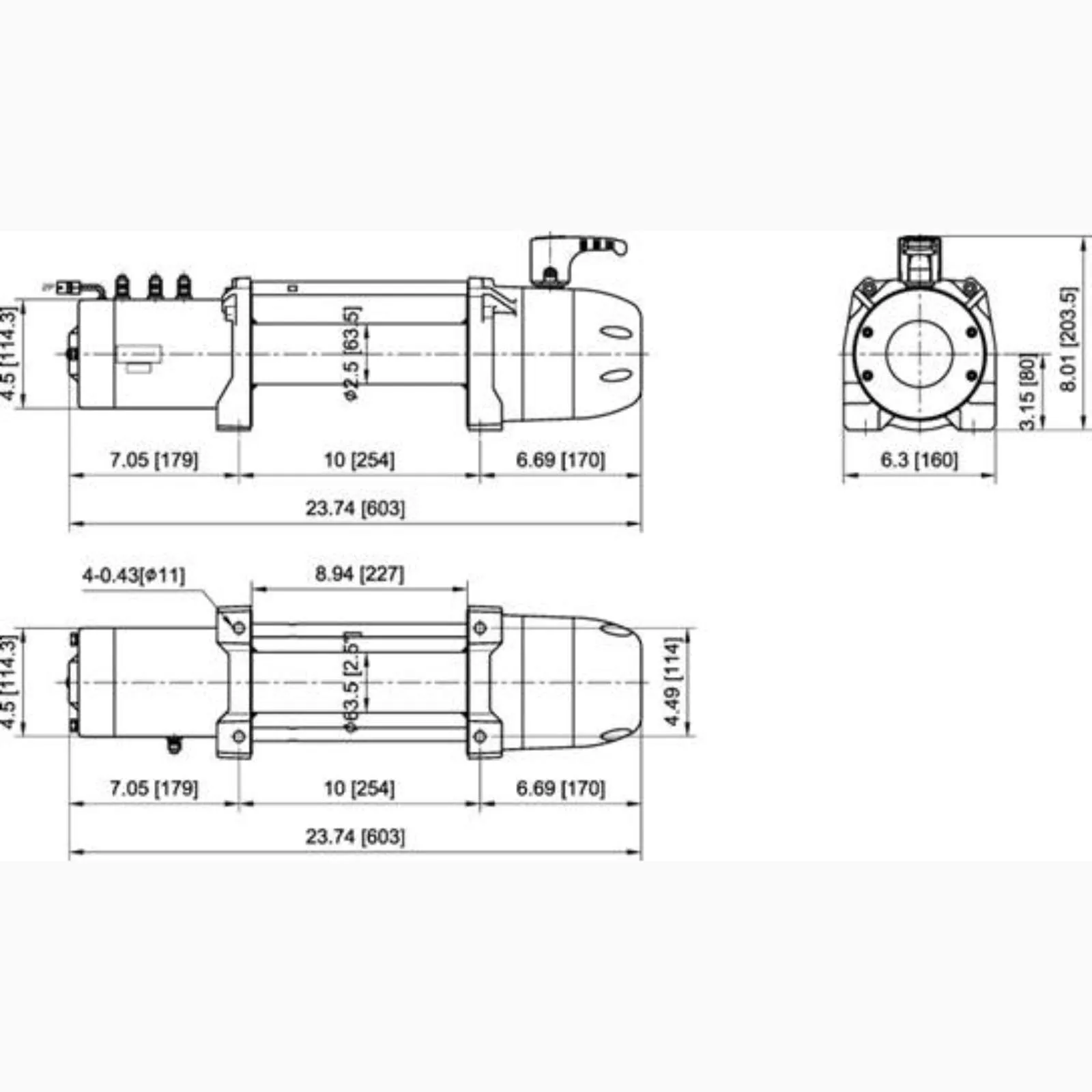

Mounting Bolt Pattern | 10" x 4.5" (254 x 114 mm) |
Winch Weight | 61.7 lb (28 kg) |
Gross Weigh | 89.1 lb (40.5 kg) |
Warranty | Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components |
Box Dimensions | 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm ) |
