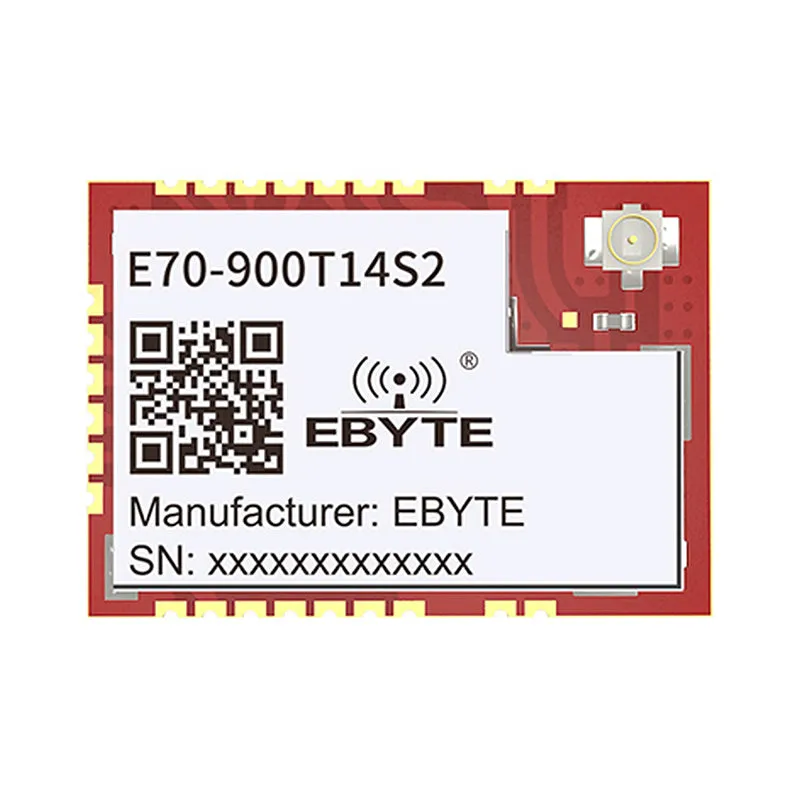

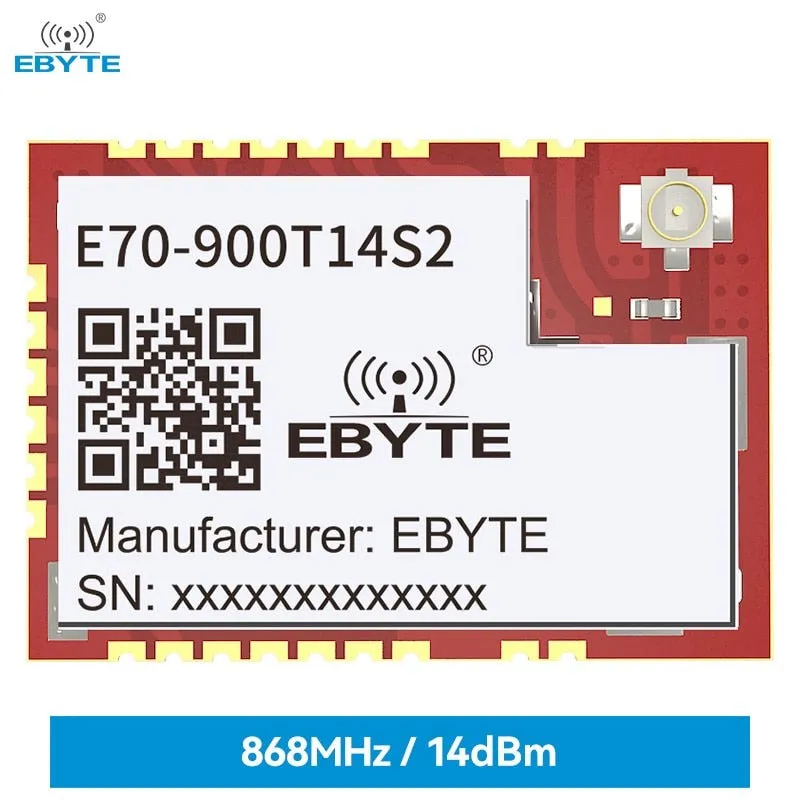

E70-900T14S2 IPEX/Stamp Hole Ti 868/915 Mhz Transceiver Receiver TI CC1310 SoC Wireless Module
[IC]：CC1310
[Frequency]：861~922.5MHz
[Power]：14dBm
[Distance]：1.5km
[Product weight]：1.2g±0.1g
[Size]：14*20mm
[Introduction]：E70-900T14S2 wireless transceiver modules, operating at 861~922.5MHz (Default : 868/915MHz), is based on originally imported CC1310 from TI, with TTL level output, 3.3V IO port voltage,24MHz industrial high-precision low-temperature drift crystal vibration; Ensure its industrial ability and stability.

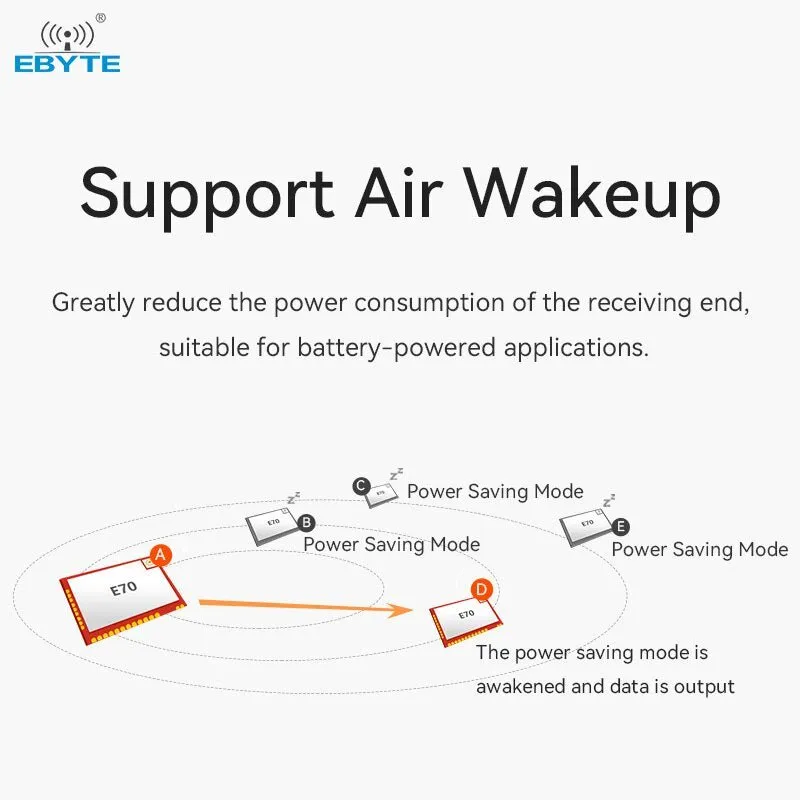

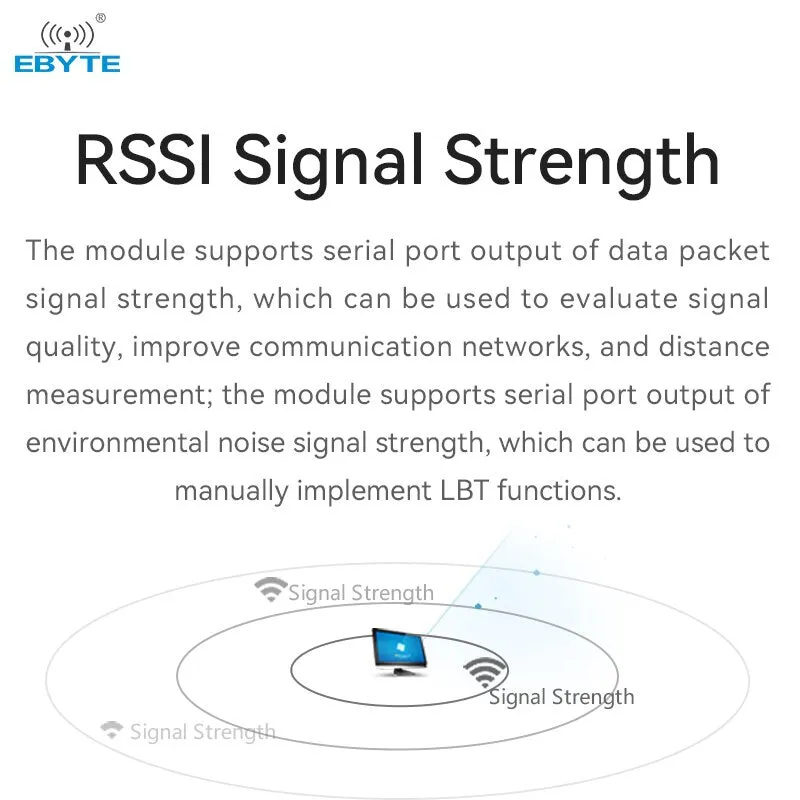

Experience reliable wireless communication with the CC1310 Wireless Serial Port Module. with a UART interface and an IPX/Stamp Hole Antenna. It features air wakeup capability with a 3.3V IO port voltage and E70-900T14S2 wireless transceiver module operating at 861-922.5MHz (Default 868/915MHz). Get accurate readings with 24MHz industrial grade low-temperature drift crystal oscillator.
Brand Name: EBYTE
Origin: Mainland China
Condition: New
Type: Wireless Serial Port Module
Model Number: E70-900T14S2
Operating Temperature: -40℃-85℃
Application: Smart Home
Package: SMD
Power Supply Voltage: Max:3.8V

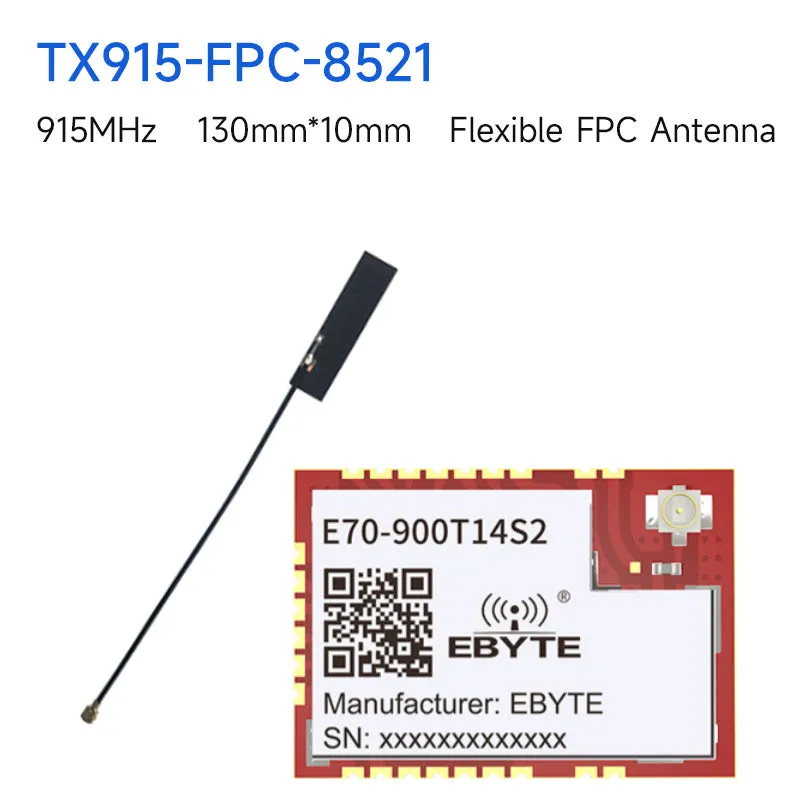

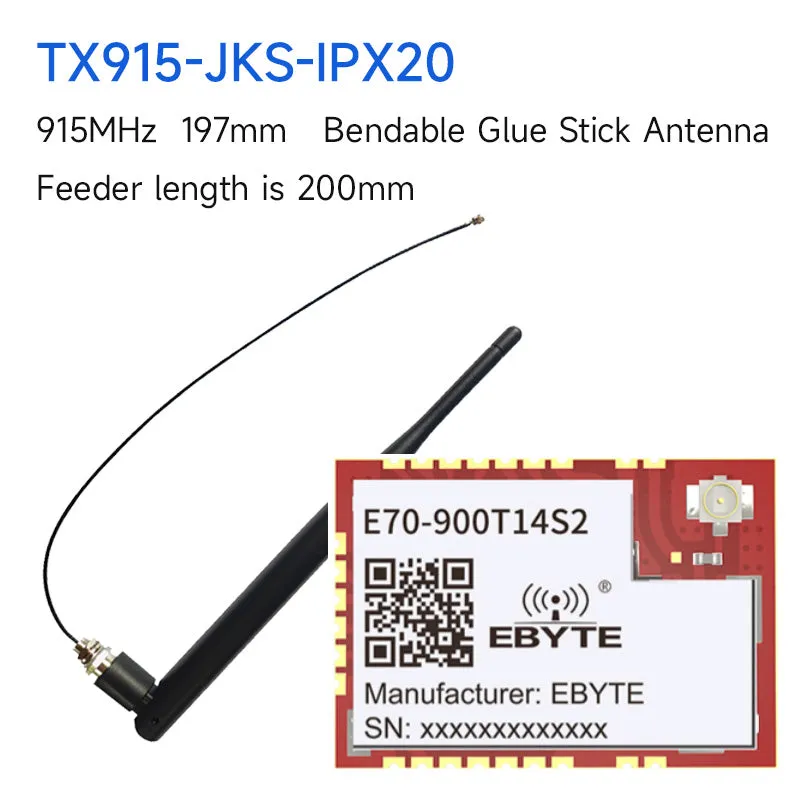

Antenna: IPX/Stamp Hole
Size: 14*20mm
| Main parameter | Performance |
Remark |
| Distance for reference |
1500m |
Test condition：clear and open area, antenna gain: 5dBi,antenna height: 2.5m，air data rate: 2.5kbps |
| TX length |
Transmission mode specification |
See transmission mode for details |
| Buffer |
2048 Btye |
- |
| Modulation |
GFSK |
- |
| Communication interface |
UART |
- |
| Package |
SMD |
- |
| Connector |
Stamp hole |
Spacing of 1.27 mm |
| Size |
14*20 mm |
- |
| Antenna |
IPEX/Stamp hole |
50 ohm impedance |
| Main parameter | Min. | Typ. | Max. | Unit | Remark |
| Operating voltage |
2.2 |
3.3 | 3.8 | V | ≥3.3V ensures output power |
| Communication level | - | 3.3 |
- | V |
For 5V TTL, it may be at risk of burning down |
| Operating temperature |
-40 |
- | 85 |
℃ |
Industrial design |
| Operating frequency |
861 |
- | 922.5 |
MHz |
Support ISM band |
| Transmitting current |
- | 36 | - | mA |
Instant power consumption |
| Receiving current |
- | 8 | - | mA |
- |
| Turn-off current |
- | 1.2 | - | μA |
Software is shut down |
| Max Tx power |
13.6 | 14 | 15.3 | dBm |
- |
| Receiving sensitivity |
-107 | -108 |
-109 | dBm |
Air data rate is 2.5kbps |
| Air data rate |
2.5k |
2.5k |
168k |
bps |
Controlled via user’s programming |
