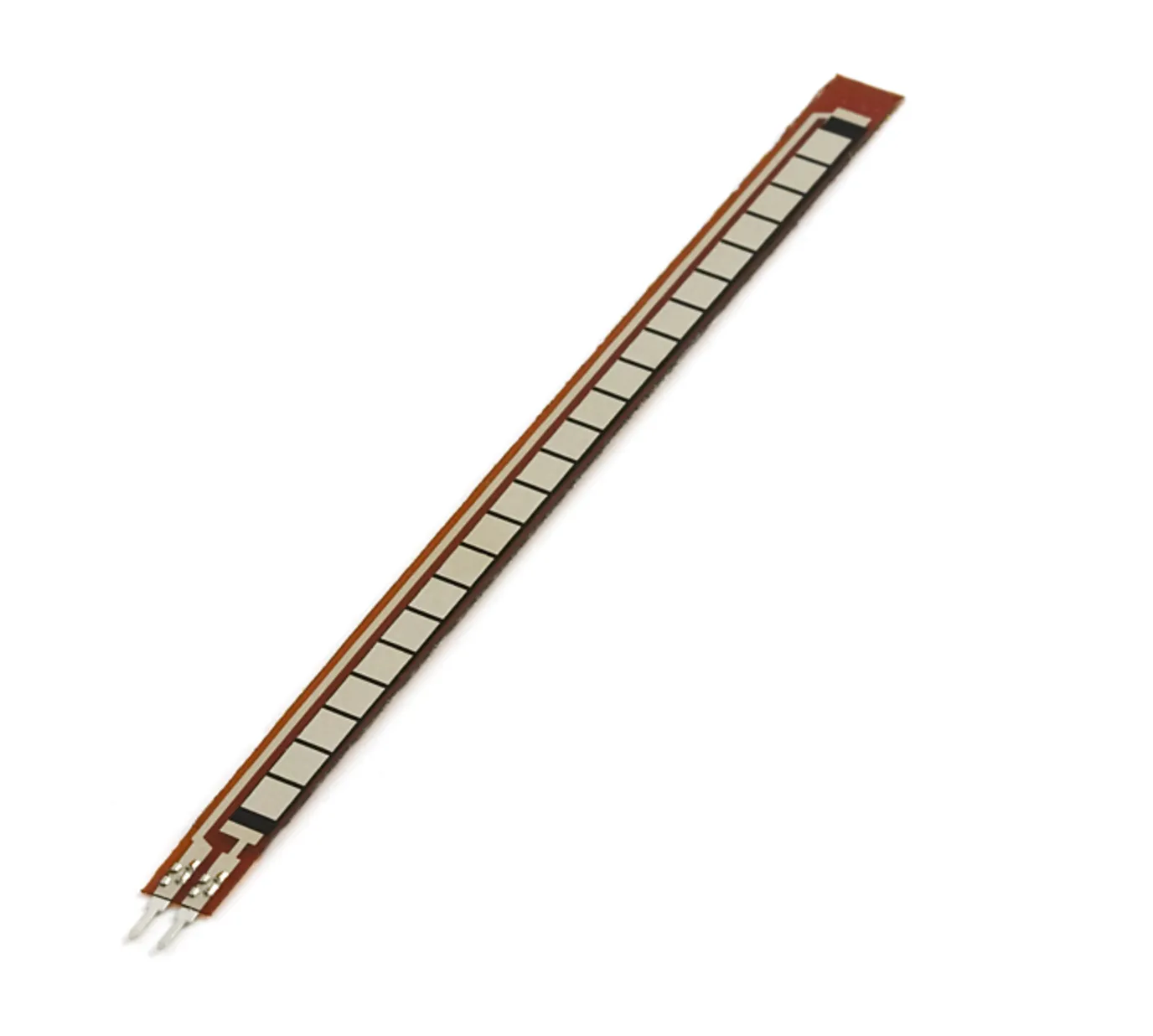

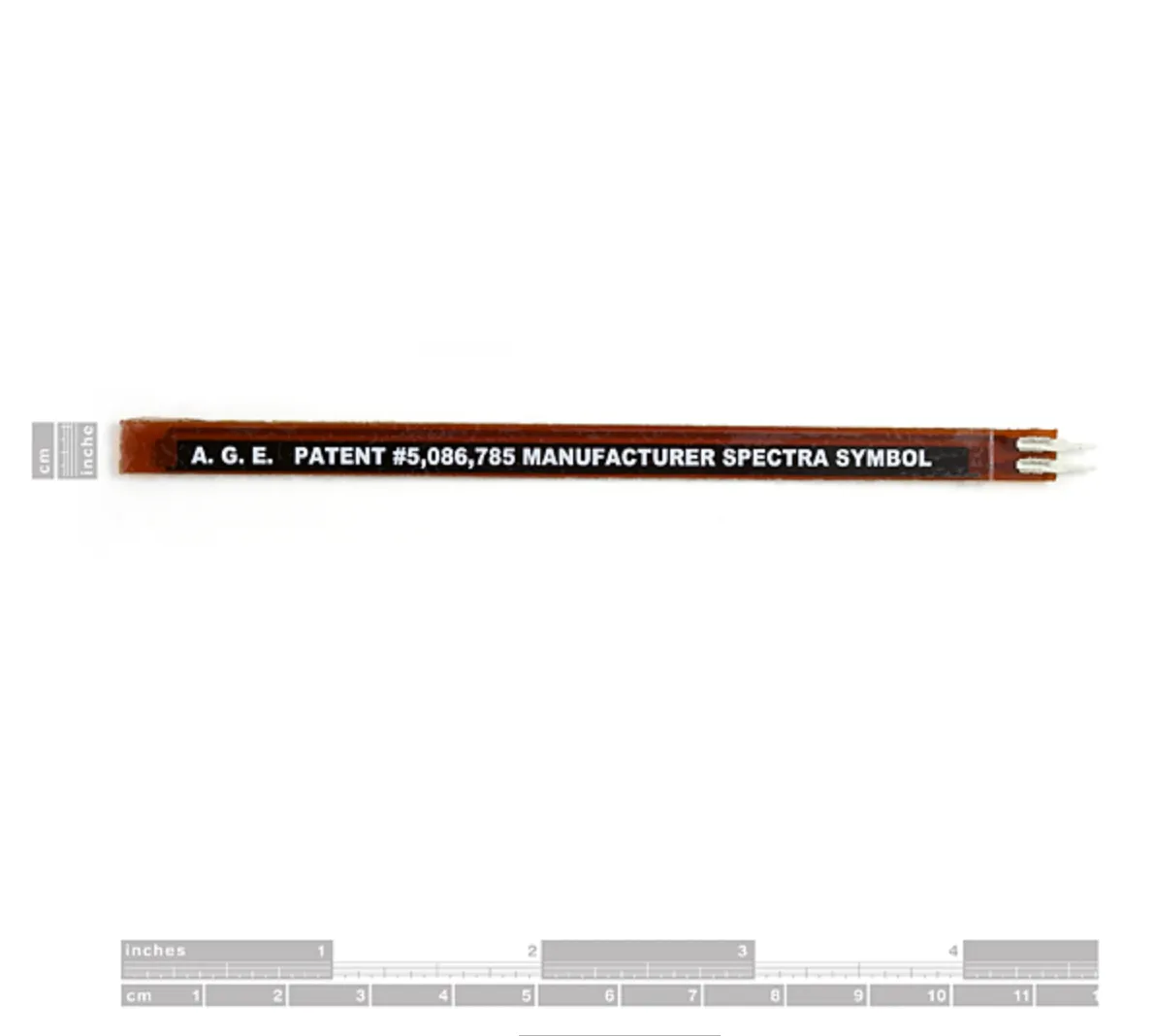

A simple flex sensor 4.5" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the original . I love the Nintendo Power Glove. It's so bad!

The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on the inside of the bend).

The connector is 0.1" spaced and breadboard friendly. Check datasheet for full specifications.

Specification:

• Straight (unflexed) resistance: ~9000 Ohm
• 90 degree bend resistance: ~14000 Ohm
• 180 degree bend resistance : ~22000 Ohm
