The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and PoE power, and are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.

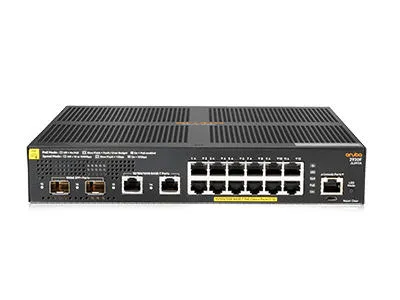

• Product Description:	HPE Aruba 2930F 12G PoE 2G/2SFP - switch - 12 ports - managed - rack-mountable
  Device Type:	Switch - 12 ports - L3 - managed - stackable
  Enclosure Type:	Rack-mountable 1U
  Subtype:	Gigabit Ethernet
  Ports:	12 x 10/100/1000 (PoE ) 2 x 1 Gigabit / 10 Gigabit SFP (uplink) 2 x 10/100/1000
  Power Over Ethernet (PoE):	PoE
  PoE Budget:	139 W
  Performance:	Throughput: 41.7 Mpps ¦ Switching capacity: 68 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 Gbps): 1.6 µs
  Capacity:	Jumbo frame size: 9220 ¦ IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000
  MAC Address Table Size:	32K entries
  Routing Protocol:	OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
  Remote Management Protocol:	SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SSH, SSH-2, CLI, XRMON
  Features:	Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), SNMP support, Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
  Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
  Power:	AC 120/230 V (50/60 Hz)
  Dimensions (WxDxH):	10 in x 10 in x 1.7 in
  Weight:	4.85 lbs
  Localization:	English / United States
  Manufacturer Warranty:	Limited lifetime warranty

• General

  Device Type:	Switch - 12 ports - L3 - managed - stackable
  Enclosure Type:	Rack-mountable 1U
  Subtype:	Gigabit Ethernet
  Ports:	12 x 10/100/1000 (PoE ) 2 x 1 Gigabit / 10 Gigabit SFP (uplink) 2 x 10/100/1000
  Power Over Ethernet (PoE):	PoE
  PoE Budget:	139 W
  Performance:	Throughput: 41.7 Mpps ¦ Switching capacity: 68 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 Gbps): 1.6 µs
  Capacity:	Jumbo frame size: 9220 ¦ IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000
  MAC Address Table Size:	32K entries
  Routing Protocol:	OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
  Remote Management Protocol:	SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SSH, SSH-2, CLI, XRMON
  Encryption Algorithm:	MD5, SSL
  Authentication Method:	RADIUS, PAP, CHAP, TACACS, TACACS
  Features:	Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), SNMP support, Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
  Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
  Processor:	1 x ARM Cortex-A9: 1.016 GHz
  RAM:	1 GB DDR3 SDRAM
  Flash Memory:	4 GB

• Expansion / Connectivity

  Interfaces:	12 x 1000Base-T RJ-45 PoE ¦ 2 x Gigabit / 10Gbit LAN SFP ¦ 1 x serial (console) ¦ 2 x 1000Base-T RJ-45
  Expansion Slots:	1 (total) / 1 (free) x expansion slot
  Installed Modules Qty (Max):	0 (installed) / 2 (max)

• Power

  Power Device:	Internal power supply
  Installed Qty:	1
  Voltage Required:	AC 120/230 V (50/60 Hz)

• Miscellaneous

  Compliant Standards:

  CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 A1:2009 A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006 A11:2009 A1:2010 A12:2011 A2:2013

  Localization:

  English / United States

• Software / System Requirements

  Software Included:

  Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center

• Dimensions & Weight

  Width:	10 in
  Depth:	10 in
  Height:	1.7 in
  Weight:	4.85 lbs

• Manufacturer Warranty

  Service & Support:

  Limited warranty - lifetime

• Environmental Parameters

  Min Operating Temperature:	32 °F
  Max Operating Temperature:	113 °F
  Humidity Range Operating:	15 - 95% (non-condensing)
  Min Storage Temperature:	-40 °F
  Max Storage Temperature:	158 °F
  Humidity Range Storage:	15 - 95% (non-condensing)

• Special Feature

  COO:	CHINA / TAIWAN

• UNSPSC Code:

  43222612
