Great for Offices, Home Offices, Café’s, Bars, Restaurants, Coffee Shops, Hospitality areas anywhere where someone might want to either get a quick charge or power their laptop, notebook, and portable devices
Devices that support QC (many Android based devices) can use the USB-A port to achieve up to Max. 18W (12V DC 1.5A)
Devices that support USB-PD (many Android based devices and iPhone8 or above as well as Laptops) can use the USB-C port to achieve up to Max. 45W. (20V DC 2.25A)
Features
- Double pole switches provide additional safety
- Twin earthing points for high integrity earthing requirements
- Constructed from high quality components and materials to ensure the longevity of the install
- Fully certified to the latest British Safety Standards
Benefits
- Over Voltage Category III – suitable for domestic and commercial installations
- Built in overheat and overload protection
- ErP Ready (0.1W in stand-by mode)
MLA/Knightsbridge RECOMMEND ONLY USING CERTIFIED USB CABLES FOR SAFETY, OPTIMUM PERFORMANCE AND TO ENSURE COMPATIBILITY
IMPORTANT: THE DEVICE CONTROLS THE POWER BEING DRAWN, NOT THE SOCKET MOST COMPATIBLE DEVICES WILL ONLY ACTIVATE FASTCHARGE BETWEEN 0-70% BATTERY POWER. AFTER THIS IT WILL REVERT TO STANDARD CHARGING PARAMETERS TO PROTECT BATTERY
Minimum mounting depth: 25-35mm (dependant on wiring conditions).
Maximum load: 13A.
USB Type: up to C Type Max. 45W. (20V DC 2.25A) A Type Max. 18W (12V DC 1.5A)
Dimensions: 87.5mm x 147.5mm.
Finish: Matt Black.
Switch Type: Double Pole
Terminal Cable Sizes: 2x 2.5mm or 1x 4mm

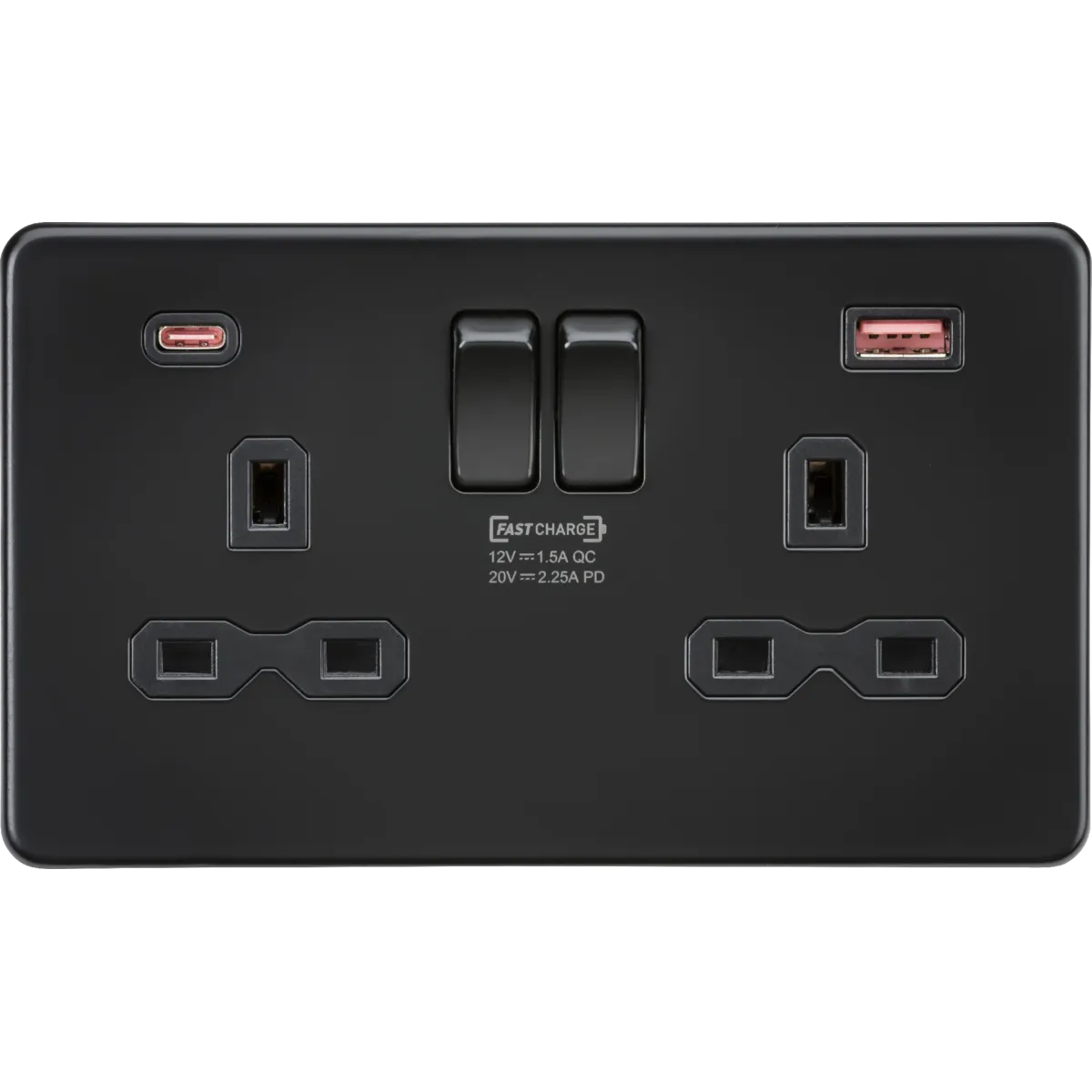

Product Code: SFR9945MBB
The manufacturers warranty is given as 2 years.
Data sheet for this product can be downloaded .
